Pioneer in the steep slope
HIGHLANDER HL20-2
The 6-wheel machine HL20-2 is mainly used in forest with medium to heavy wood.
Pioneer in the steep slope
The 6-wheel machine HL20-2 is mainly used in forest with medium to big timber.
The balanced weight distribution results in an optimized ground pressure and a maximized ground protection even on soft grounds. The Off-road mobility is unique thanks to telescopic extension feet, automatic level compensation and the portal tandem axle.
Downloads
HIGHLANDER HL20-2

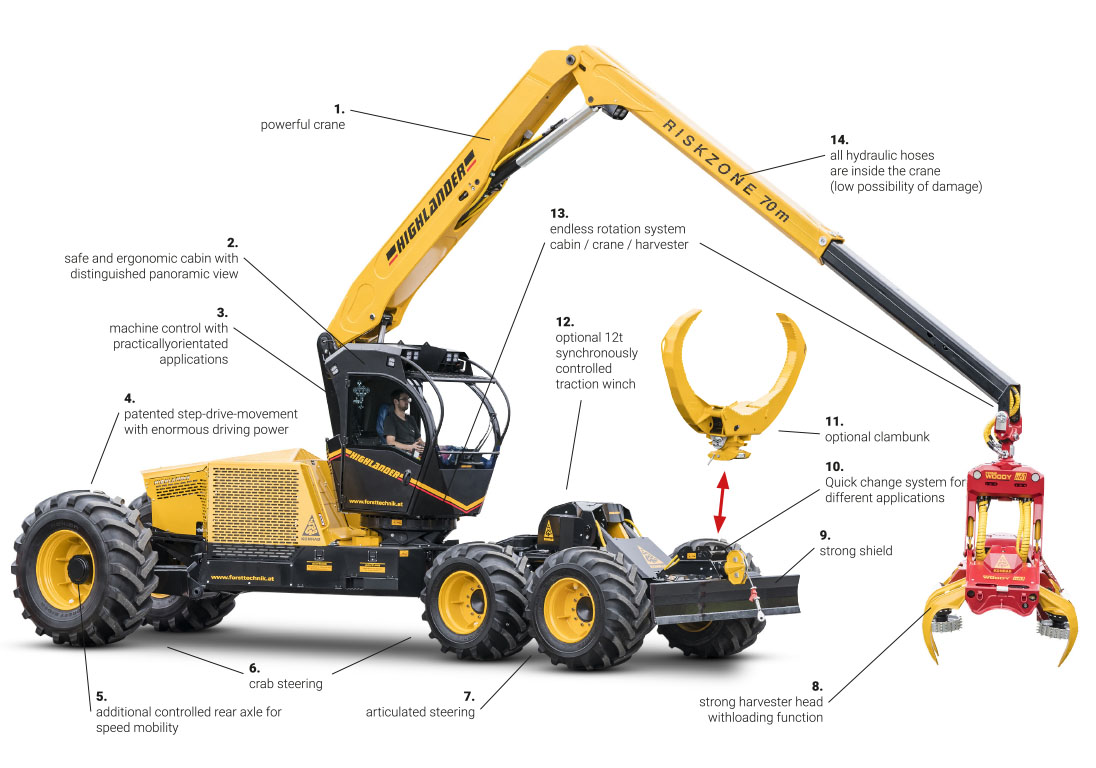

Highlights
HIGHLANDER HL20-2
Measurements
HIGHLANDER HL20-2
Technical data
General Information
| Typical operating weight | 25500 kg ¹) |
|---|---|
| Control system | KTC 1.0 |
| Harvester units | WH50-1, WH60-1 |
Engine
| Stage V | |
|---|---|
| Motor type | FPT 6-cylinder CR |
| Power (2200 U/min) | 212 kW |
| Torque (1500 U/min) | 1160 Nm |
| Total displacement | 6,7 l |
| Diesel tank capacity | 340 l |
Crane system
| Crane type | HL24 |
|---|---|
| Crane lifting torque | 240 kNm |
| Tilt angle | +23,6° / -9,5° |
| Tilt angle incl. wheel rockers | +28,0° / -14,0° |
| Range | 10,8 m |
| Slewing torque | 44 kNm |
| Slewing torque | 360° (endless) |
Chassis
| Portal tandem axle | Rear axle | |
|---|---|---|
| Drive | Portal tandem axle with axial- piston motor and 2-speed gearbox | Axial piston motor with gearbox |
| Brake system | Multiple-disc brake | |
| Type of steering | Front-wheel, rear-wheel, all-wheel and crab steering | |
| Steering system | Articulated steering | Single-wheel steering |
| Steering angle ²) | +27° / -27° | |
| Standard tyres | 710 / 45 R26,5 | 710 / 70 R34 |
| Pulling force | 272 kN | |
| Speed | 18 km/h | |
| Axle track | 2240 mm | |
| Ground clearance | 640 mm | |
Hydraulic system
| Drive pumps | axial piston pump, closed oil circuit, pmax 450 bar |
|---|---|
| Working pumps | axial piston pump, open oil circuit, pmax 350 bar |
| Power takeoff pump | axial piston pump, open oil circuit, pmax 350 bar |
| Filling capacity hydraulik oil tank | 250 l |
Options
| Rigging winch RW90-1 | max. 80 kN pulling force (adjustable), Cable: Ø13mm / 120 m |
|---|---|
| Traction winch TW90-1 | max. 90 kN pulling force (adjustable), with cable discharger wrap arm, usable as rigging winch, Cable: Ø14mm / 300m |
| Clam bunk | with integrated quick-change system, adjustable pivot and swing brake, ca. 2 m² loading area |
1) Version: traction winch inkl. cable, clam bunk, WH 60-1 , 1/2 tank filling, without chains
2) Without chains and tracks
3) Extension: 2500 mm
4) Extension: 2000 mm
Optional equipment: In addition to the standard equipment, a broad range of optional equipment is also available. Further information on standard and optional equipment can be obtained from your KONRAD distributor.
The manufacturer reserves the right to make technical modifications and improvements.
