The powerful universal machine
HIGHLANDER HL10-2
The universal machine for processing work on the forest road as well as thinning and skidding work in this field.
The powerful universal machine
The HL10-2 convinces with its maneuverability and is just as suitable for thinnings as for final fellings.
Climbing ability is always assured thanks to four-wheel drive with engageable hydraulic differential lock and large drive wheels. The stability as well as the slew moment of the mache is always maintained thanks to automatic level compensation. The short wheelbase combined with 2-wheel-, 4-wheel- and crab steering, makes the HL10-2 extremely manoeuvrable.
Downloads
HIGHLANDER HL10-2

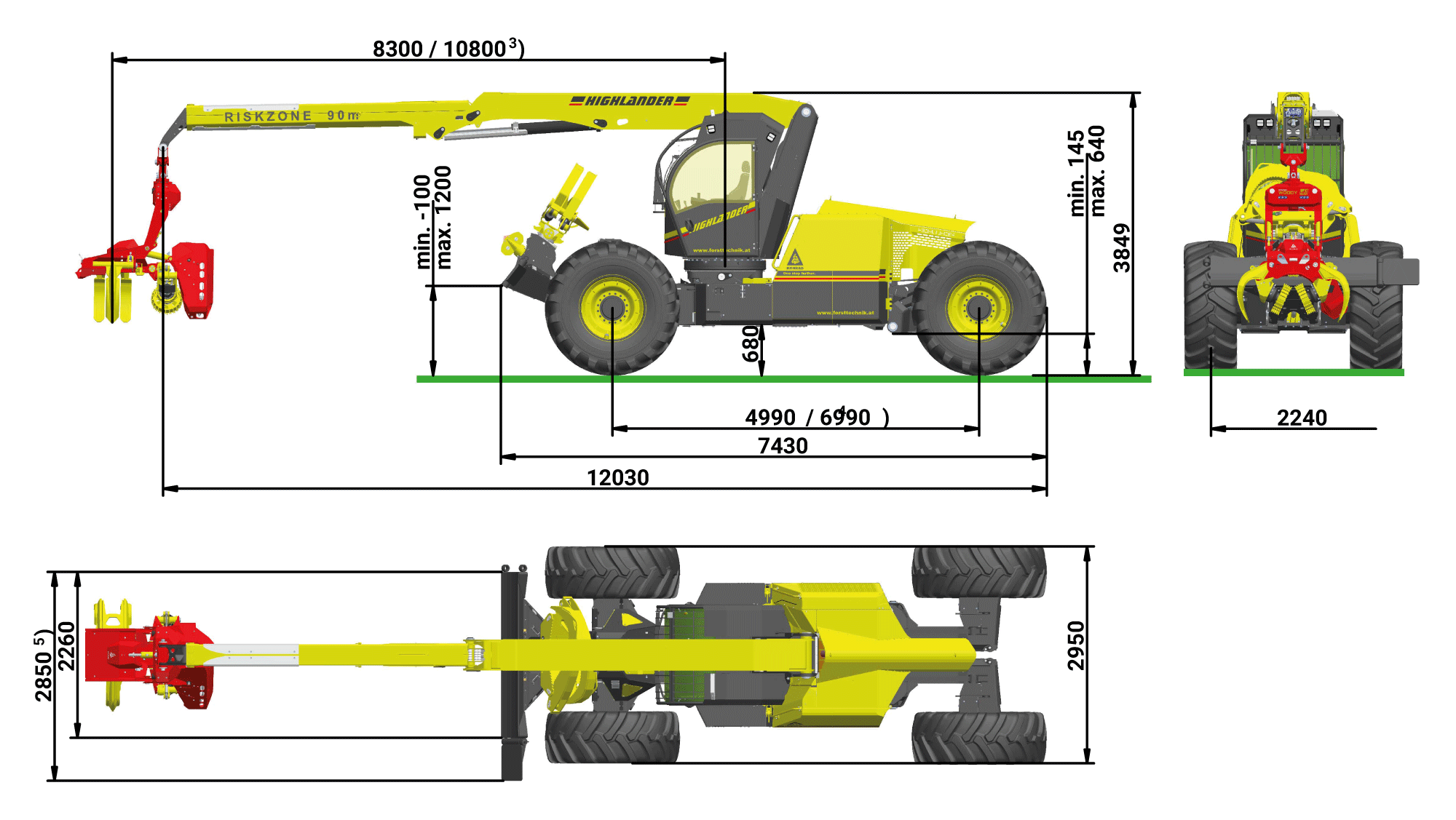

Measurements
HIGHLANDER HL10-2
Technical data
General Information
| Typcial operating weight | 22500 kg ¹) |
|---|---|
| Control system | KTC 1.0 |
| Harvester units | WH50-1, WH60-1 |
Engine
| Stage V | |
|---|---|
| Motor type | FPT 6-cylinder CR |
| Power (2200 U/min) | 212 kW |
| Torque (1500 U/min) | 1160 Nm |
| Total displacement | 6,7 l |
| Diesel tank capacity | 340 l |
Crane System
| Crane type | HL24 |
|---|---|
| Crane lifting torque | 240 kNm |
| Tilt angle | +23,6° / -9,5° |
| Tilt angle incl. wheel rockers | +28,0° / -14,0° |
| Range | 10,8 m |
| Slewing torque | 44 kNm |
| Slewing range | 360° (endless) |
Chassis
| Front axle | Rear axle | |
|---|---|---|
| Drive | Axial piston motor with gearbox | |
| Brake system | Multiple-disc brake |
|
| Type of steering | Front-whee, rear-whee, all-wheel and crab steering |
|
| Steering system | Steering axle, fixed | Single-wheel steering |
| Steering angle ²) | +27° / -27° | |
| Standard tyres | 710 / 70 R34 | |
| Pulling force | 235 kN | |
| Speed | 18 km/h | |
| Axle track | 2240 mm | |
| Ground clearance | 640 mm | |
Hydraulic system
| Drive pumps | axial piston pump, closed oil circuit, pmax 450 bar |
|---|---|
| Working pump | axial piston pump, open oil circuit, pmax 350 bar |
| Power takeoff pump | axial piston pump, open oil circuit, pmax 350 bar |
| Filling capacity hydraulik oil tank | 250 l |
Options
| Rigging winch RW90-1 | max. 80 kN pulling force (adjustable), Cable: Ø13mm / 120 m |
|---|---|
| Traction winch TW90-1 | max. 90 kN pulling force (adjustable), with cable discharger wrap arm, usable as rigging winch, Cable: Ø14mm / 300m |
| Clam bunk | with integrated quick-change system, adjustable pivot and swing brake, ca. 2 m² loading area |
1) Version: traction winch inkl. cable, clam bunk, WH 60-1 , 1/2 tank filling, without chains
2) Without chains
3) Extension: 2500 mm
4) Extension: 2000 mm
5) incl. dozer widening
Optional equipment: In addition to the standard equipment, a broad range of optional equipment is also available. Further information on standard and optional equipment can be obtained from your KONRAD distributor.
The manufacturer reserves the right to make technical modifications and improvements.
